Measure the distance

Let us give you some tips

If you're a plumber and you're installing a meter, there are a few basics you need to know. For example, the distance you need to allow between the pipes depends on the size of the meter. You'll need to measure the distance you need to allow for light and heavy duty meters.

Want more details on how to install a meter correctly?
Download our Water installation guide (945KB).

20mm to 50mm light duty meters

50mm to 300mm heavy duty meters

20mm to 50mm light duty meters

You need to measure between the ends of the threads to work out the distance needed to allow for these light duty meters. The arrows on the image show where to start and finish measuring.

Once you've done this, use the measurements below to work out your distance.

The arrows show where to start and finish measuring.



Meter size (DN) – drinking water

Distance to allow – drinking water

20 mm

260 mm

25 mm

310 mm

32 mm

350 mm *

40 mm

350 mm *

50 mm light

340 mm *

The right-angle stop valve and elbow have male BSP threads.

* This doesn't include the distance for the backflow prevention device.

Meter size (DN) – recycled water

Distance to allow – recycled water

20 mm

270 mm

25 mm

265 mm

The right-angle stop valve has a female BSP thread.

The elbow has a female BSP thread.

You need to allow a minimum of 300mm clearance around these meters. This helps us safely read, maintain and exchange them in the future.

When you've got your distance right, you need to insert a bridging piece where the meter will go. We will remove the bridging piece when we install the meter.

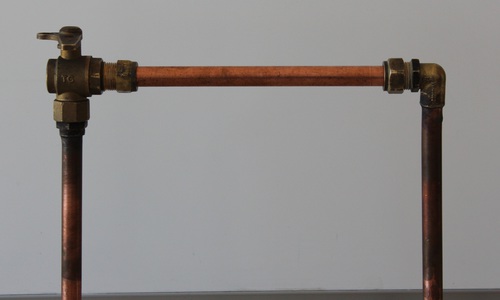

Inserting the bridging piece

You need to insert the bridging piece where the meter will go. We remove the bridging piece when we install the meter.

A correctly installed meter

If everything is done correctly, we won't have any problems installing a meter later on. This is what a correctly installed meter looks like.

50mm to 300mm heavy duty meters

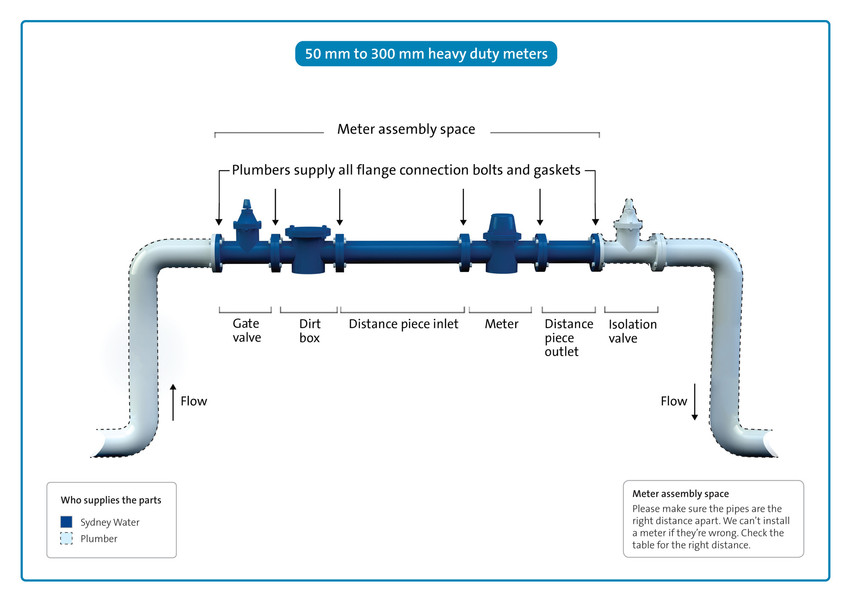

To work out the distance you need for these heavy duty meters, measure between the flange ends. These ends have flat surfaces instead of threaded ones.



Heavy duty meters

These meters have extra parts, so you need to allow distance for these too.

Then use these measurements to work out your distance.

Meter size

Gate valve

Dirt box

Distance piece inlet

Meter

Distance piece outlet

Meter assembly space

50 mm heavy duty

175 mm

208 mm

372 mm

311 mm

150 mm

1,216 mm

80 mm

203 mm

252 mm

396 mm

413 mm

240 mm

1,504 mm

100 mm

229 mm

260 mm

476 mm

483 mm

300 mm

1,748 mm

150 mm

267 mm

406 mm

762 mm

500 mm

450 mm

2,385 mm

200 mm

292 mm

428 mm

1,000 mm

520 mm

600 mm

2,840 mm

250 mm

330 mm

522 mm

1,250 mm

450 mm

750 mm

3,302 mm

300 mm

356 mm

580 mm

1,500 mm

500 mm

900 mm

3,836 mm

We need you to allow a minimum of 500 mm clearance around these meters, too. This is so we can exchange them in future.
